SewerMate 1300L Pump Chamber c/w Submersible Grinder Pump & High Level Alarm

The SewerMate 1300L pump chamber consists of a high quality rotary moulded polyethylene tank ideal for collecting wastewater and discharging to low pressure sewer systems.

The pump chamber is ideal for domestic or light commercial installations. This pump chamber is certified and traffic-rated with a cast iron lid for where it is needed to be positioned in a driveway and has a concrete ballast for applications where there is a high-water table. The concrete ballast has a unique shaped base to reduce install time.

A positive displacement submersible grinder pump installed in the chamber will grind
common sewage into a slurry, then move it on to a low-pressure sewer main or other
suitable outlet, depending on the application.

The pump is controlled with a level transducer which is mounted inside the chamber. A timer can also be added to the pump controller, if a timed pump out is needed. A high-level alarm is installed to provide an early warning of any pump problem.

The pump chamber comes fully assembled so can be installed, connected, backfilled, and commissioned all within a few hours.

This chamber is installed below the surface with the pump inside the chamber, so any noise is eliminated, and no tank is visible on your property.

Ideal Situation:

• Collecting wastewater and discharging to low pressure sewer systems
•  Domestic or light commercial installations

• Where a pump chamber is needed to be positioned in a driveway
• High-water table applications

Features:

• Heavy duty low speed grinder pump
•  Pump is controlled with level transducer
• Traffic-rated pump chamber for driveway applications

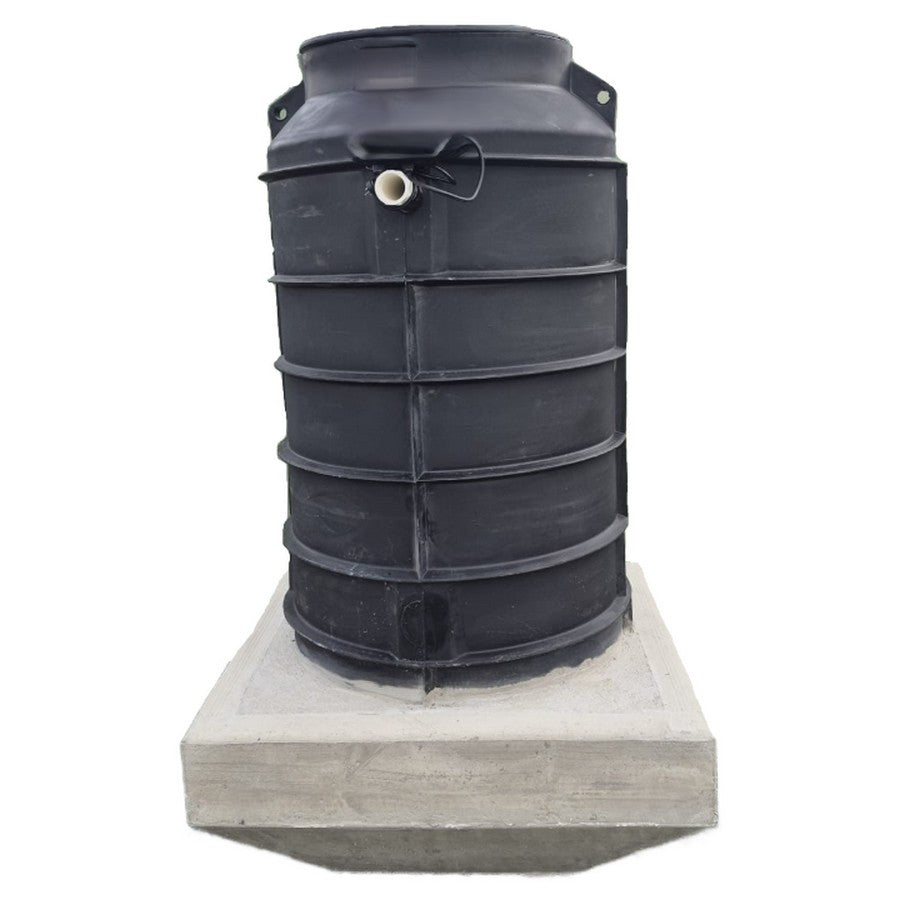

• Concrete ballast to stop tank floating in high water table applications
• Unique shaped concrete ballast to reduce shovel work
• The pump chamber comes fully assembled with 50mm outlet.

• High level and pump fault alarm is installed to give an early warning of any pump problems

Pump chamber dimensions: 1000mm in diameter x 2070mm high
Concrete ballast dimensions: 1200mm x 1200mm
