Onga Multi Evo Pump

Self-priming horizontal multi-stage centrifugal pump with an innovative, high-efficiency hydraulic system coupled to Onga's latest generation motor. Use for domestic pressure system (with Presscontrol or pressure switch kit), water transfer, irrigation and garden water supply. Certified for use with drinking water - AS/NZ 4020.

Key features

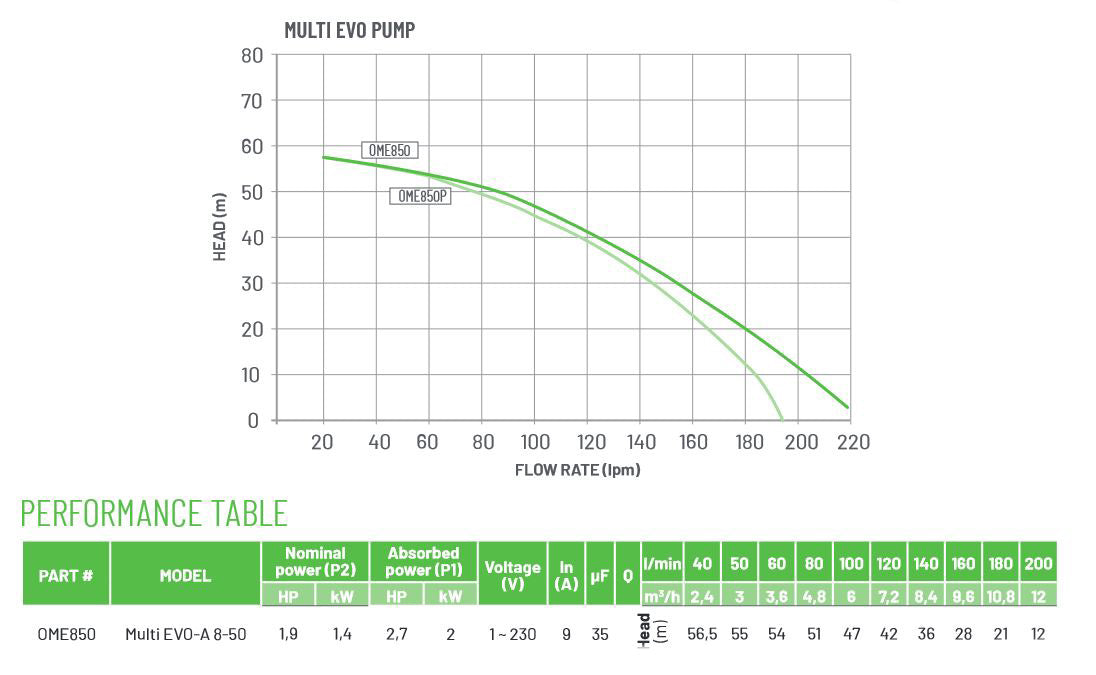

• Hydraulic performance conforms to ISO 9906:2012 - Grade 3B
• Type of liquid: clean water with no suspended solids or abrasive material
• Maximum liquid temperature 50°C
• Maximum operating pressure 8 bar
• Robust design
• Quiet operation
• Wide range of performance levels to suit various applications
• Self-priming with up to 8m suction lift
• Latest hydraulic design offers great reliability and efficiency
• D.R.O.P. system for pump protection

Motor

• Enclosed, air ventilated (TEFC)
• 2 poles, 50 Hz (n=2850 rpm)
• Protection class: IP55
• Insulation class: F
• Maximum room temperature 40°C
• Single phase power supply with permanently inserted condenser and thermal protection incorporated into motor winding
